Ghana deaf ed mission projects
SAMAS CONSTRUCTION WORKS LIMITED (CIVIL ENGINEERING AND BUILDING WORKS)

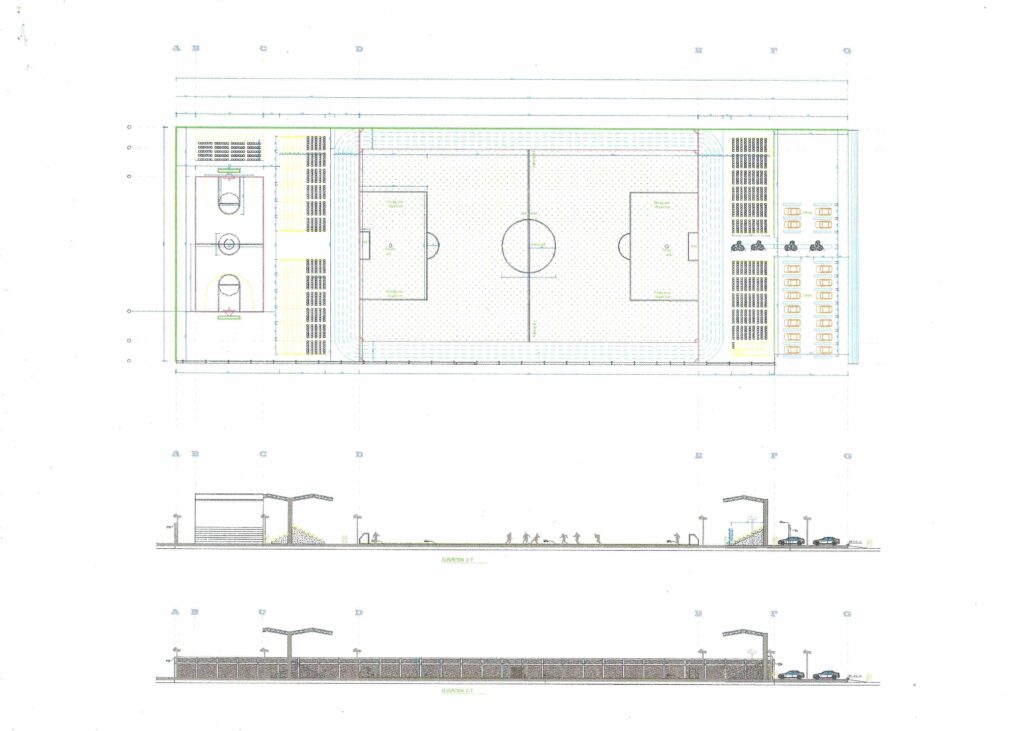

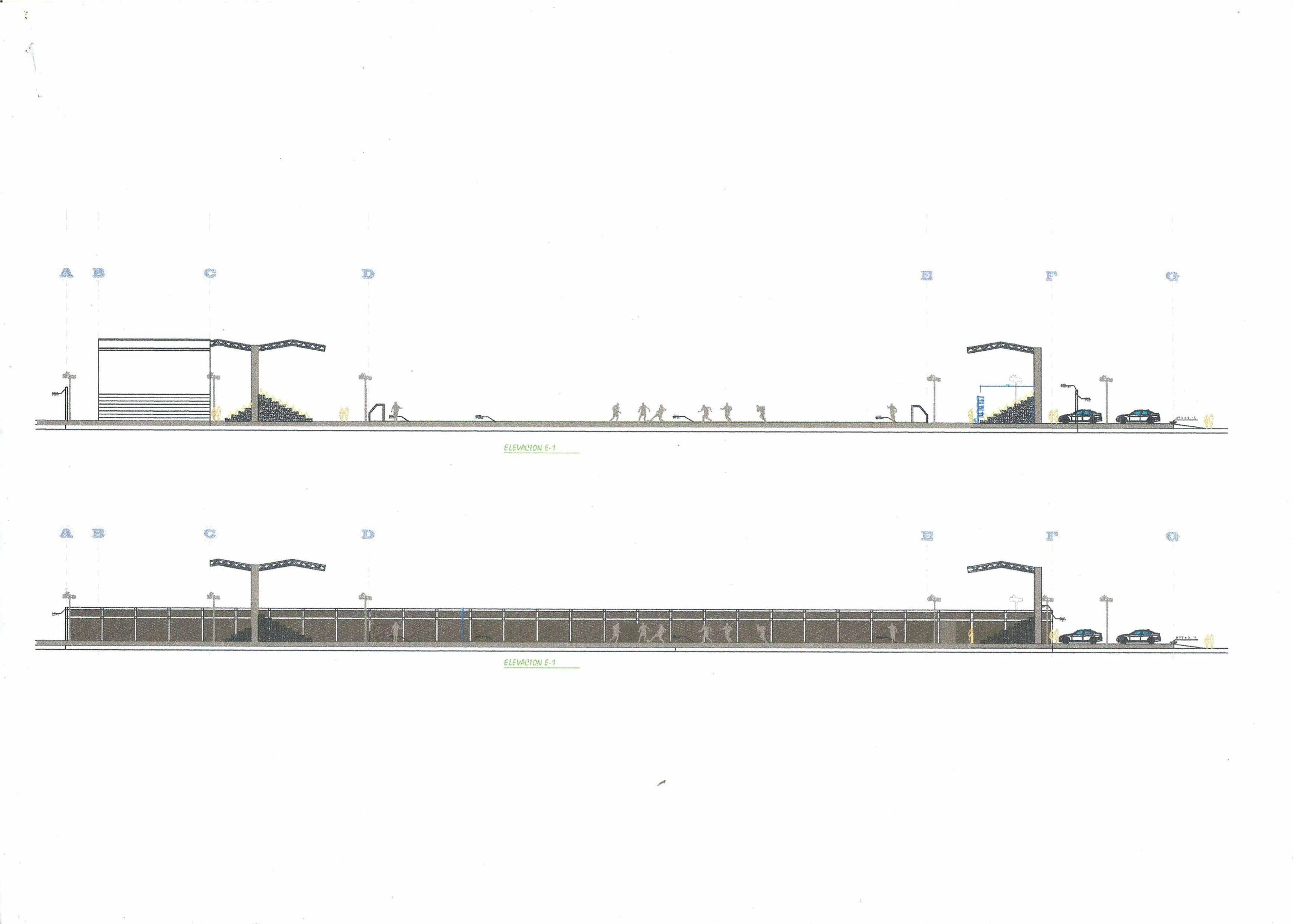

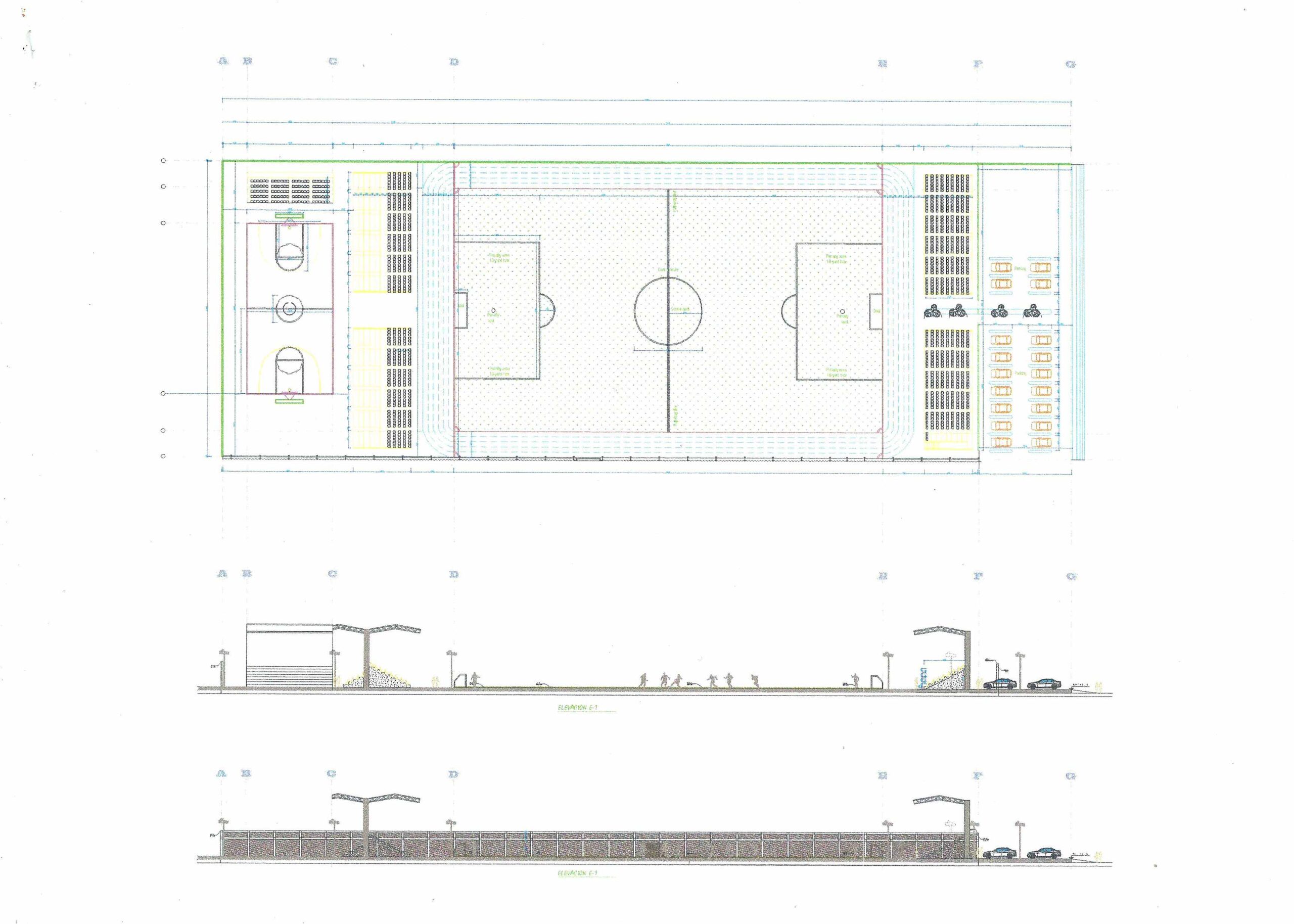

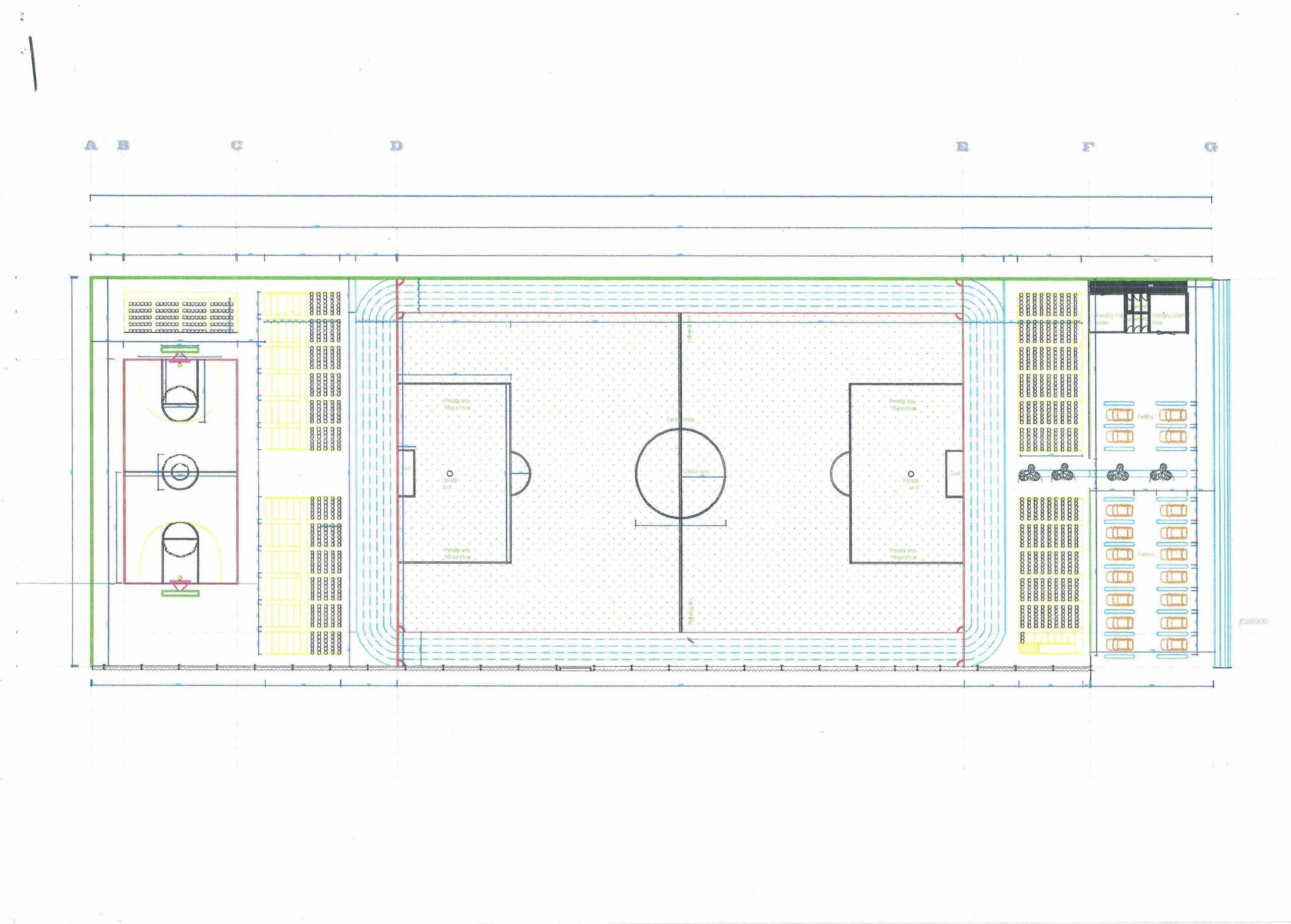

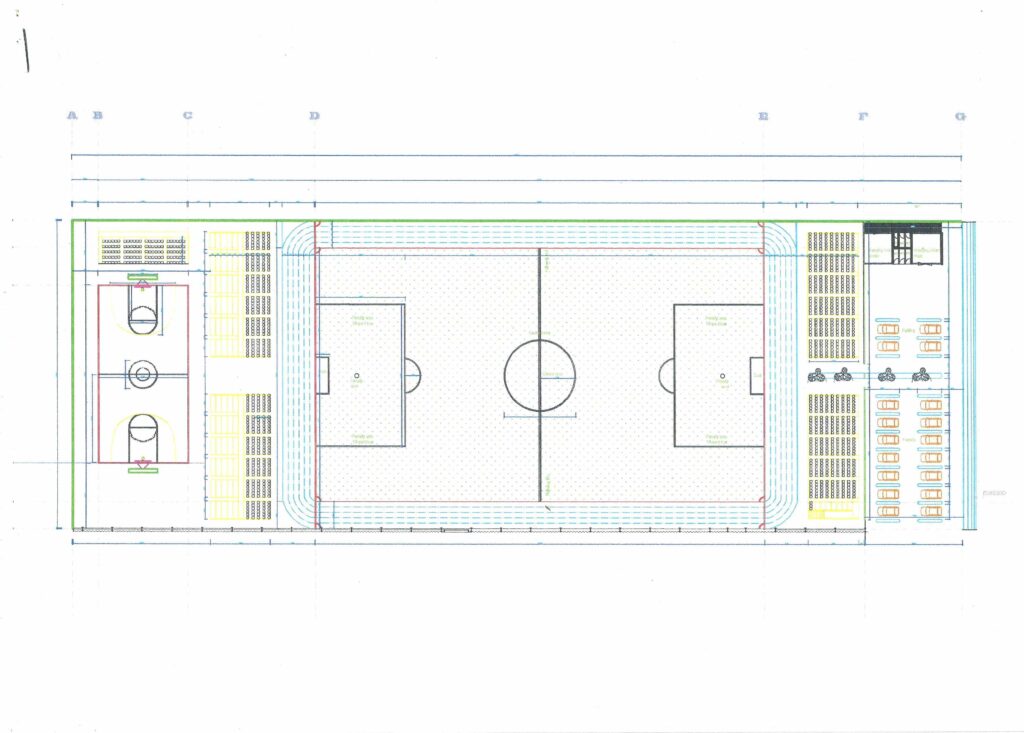

CONSTRUCTION OF ASTROTURF WITH TARTAN TRACKS FOR THE AKUAPEN SCHOOL OF THE DEAF BILL OF QUANTITIES
| ITEM | DESCRIPTION | UNIT | QTY | RATE GH₵ | AMOUNT GH₵ |
|---|---|---|---|---|---|
|
|
BILL NO.1 GENERAL ITEMS |
|
|
|
|
|
A |
Preliminaries |
|
|
|
75,000.00 |
|
PRELIMINARIES: Total carried forward to Summary |
75,000.00 |
||||
| ITEM | DESCRIPTION | UNIT | QTY | RATE GH₵ | AMOUNT GH₵ |
|---|---|---|---|---|---|
|
|
BILL NO.2 THE WORKS
ASTROTURF WITH TARTAN TRACKS |
|
|
|
|
|
A |
Demolish block and concrete structures and remove from site |
m3 |
146 |
182.00 |
26,572.00 |
|
B |
Fell and remove trees girth 1m - 2m |
nr |
2 |
860.00 |
1,720.00 |
|
C |
Excavate topsoil, maximum depth not exceeding 250mm and dispose |
m3 |
1,040 |
94.00 |
97,760.00 |
|
D |
Provide, spread and camped imported fill material as turf base, maximum thickness not exceeding 500mm |
m3 |
770 |
142.00 |
109,340.00 |
|
E |
Provide and install 150mm diameter perforated pipes for subsurface drainage. including all accessories |
m |
580 |
178.00 |
103,240.00 |
|
F |
Provide, spread and compact 1Omm granite membrane for subsurface drainage, maximum thickness not exceeding 200mm |
m3 |
510 |
242.00 |
123,420.00 |
|
G |
Provide and lay 20rnin HD foam layer over compacted granite layer |
m2 |
2550 |
62.00 |
158,100.00 |
|
H |
Provide and install artificial turf including all accessories and markings |
m2 |
1640 |
147.00 |
241,080.00 |
|
I |
Provide and install galvanized steel goal posts with nets |
nr |
2 |
8,800.00 |
17,600.00 |
|
J |
Provide and install 3-in-1 steel chairs as players' bench seats with steel canopy |
nr |
4 |
10,240.00 |
40,960.00 |
|
K |
Provide and Install chain link fence with 100mm galvanized steel posts including all accessories |
m |
210 |
926.00 |
194,460.00 |
|
L |
Provide and place C20/25 mass concrete kerbing for boundary definition and protection of turf edges, thickness not exceeding 150mm |
m |
516 |
48.00 |
24,768.00 |
|
M |
Provide and install artificial tartan tracks including all accessories and markings |
m2 |
910 |
262.00 |
238,420.00 |
|
N |
Mow for a sum of GH₵ 60,000.00 for the provision and installation of lighting systems and fittings |
Item |
|
|
60,000.00 |
|
O |
Provide and place C30/25 reinforced concrete in stands. including formwork |
m3 |
260 |
1,225.00 |
318,500.00 |
|
P |
16mm diameter high yield bars in concrete stands |
ton |
21 |
9,950.00 |
208,950.00 |
|
Q |
Allow for a sum of GH₵ 350,000.00 for the fabrication and installation of steel canopies for stands, including spraying
|
Item |
|
|
350,000.00 |
|
R |
Allow for a sum of GH₵ 50,000.00 for the provision and installation of plumbing systems and fittings |
Item |
|
|
50,000.00 |
|
S |
Allow for a sum of GH₵ 140,000.00 for the provision and furnishing of 2 dressing rooms |
Item |
|
|
140,000.00 |
|
T |
Allow fore sum of GH₵ 200,000.00 for the refurbishment of existing basketball court |
Item |
|
|
200,000.00 |
|
ASTROTURF WITH TARTAN TRACKS:Total carried forward to Summary |
2,704,890.00 |
||||
SUMMARY
| ITEM | DESCRIPTION | UNIT | QTY | RATE GH₵ | AMOUNT GH₵ |
|---|---|---|---|---|---|
|
A |
Preliminaries |
|
|
|
75,000.00 |
|
B |
ASTROTURF WITH TARTAN TRACKS |
|
|
|
2,704,890.00 |
|
TOTAL WORKS |
2,779,890.00 |
||||
